Video of Club 8000
SKU | CLUB-8000 |
Amp type | CLASS-D |
Power(RMS) | 1000W |
Power(P.M.P.O) | 8000W |
Input | TRS/XLR Combo Jack*4 + RCA*1+AUX*1 |
Output | XLR*2+Speakon Socket*1+TRS*2 |
Function | Bluetooth |
TWS | |
Display screen with control buttons |
Club 8000 Owner Manual
PRORECK Array Installation

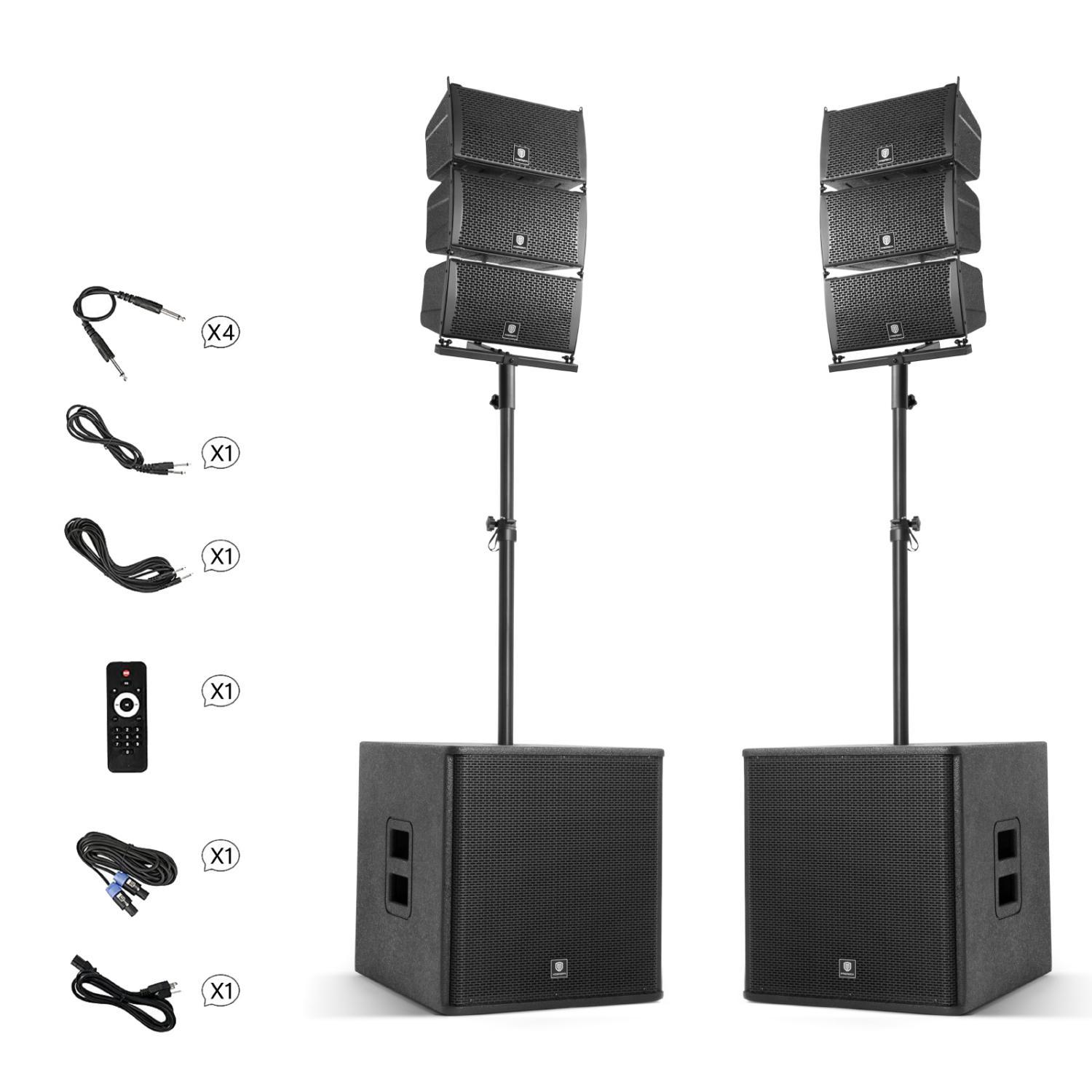

Packages Includes
- PRORECK 18-Inch Subwoofer Powered x 1
- PRORECK 18-Inch Subwoofer Passive x 1
- 6.5-Inch Line Array Speakers x 6
- 47-Inch Mounting Pole from Subwoofer to Speaker, Heavy Duty Steel x 2
- 30-Feet Speakon Cable x 1
- 8-Inch 1/4" Cable x 4
- 6-Feet 1/4" Cable x 1
- 33-Feet 1/4" Cable x 1
- 6-Feet Power Cord x 1
- Speaker Stands x 2
- Remote Control x 1
- PRORECK Club 8000 User Manual x 1
Product Features
- Voltage: 115V/230v
- Power(P.M.P.O): 3000W*2 Subwoofers+1000W*2(Bi-AMP) Arrays
- Power(RMS): 400W*2+100W*2(Bi-AMP)
- Speaker SPL Sensitivity(1w@1m): 124dB
- Subwoofer Size: 2*18" subwoofer / Satellite Speaker Size: 6*6.5"Full Range Array Speakers
- Subwoofer Magnet: 70oz / Satellite Speaker Magnet: 15oz
- Subwoofer Coil Size: 3" / Satellite Speaker Coil Size: 1"
- Subwoofer Impedance: 8ohms / Satellite Speaker Impedance: 8ohms
- Satellite Speaker Horn Size: 1"
- Subwoofer Frequency Response: 50Hz-20k Hz
- Active/Passive Subwoofer Weight: 97.7 lbs/88.4 lbs
- Satellite Speaker Weight: 60.1 lbs
- Subwoofer Carton Dimensions: 26.4*25.8*24.1 inches
- Satellite Speaker Carton Dimensions: 28.4*20.9*16.6 inches
Introduction
The CLUB-8000 is a complete package all-in-one 18" PA system. Everything you need in a pro PA system setup is included: You get two 18 inch subwoofers with 8000 watts of total power. The system includes a powered speaker that features the built in subwoofer AMPLIFIER-CLUB8000AMP and a second passive 18 inch subwoofer that is powered from the master speaker/amp.They are connected by the PRORECK speakon cable. You need to insert it and then twist it to the right to lock it in place. Rounding off this system are 6 top linear array speakers at 6.5 inch.Connecting to the powered subwoofer. The array speakers for proreck club 8000 are designed specifically, which is called PR-488 at 8 Ohm.
The CLUB 8000 is perfect for DJ applications, karaoke, and parties or for live music gigs. The PRORECK PA system has 1000 Watt RMS, and can accommodate up to 300 persons and 1000 ㎡. Wide frequency response (from 100-20KHz) makes it suitable for amplifying any type of audio including music or vocals. Separate Bass and Treble controls are also included so that you can custom tailor your sound stage accordingly in all situation like church, party, concert.
The CLUB-8000 has a great Bluetooth integration, USB input, SD card input, built-in mixer, and a wireless remote control. The 18" subwoofers puts out great quality bass and lows while the line array takes care of the high frequencies. Rock-solid dual 18 inch subwoofers are made of MDF material and reduces resonance for distortion-free and accurate response. 6 tweeter speakers and 6 mid-tweeters ensure clear and deep stereo sound. In this way, the system is optimized to deliver an overall balanced sound. The powered subwoofer features a Clip LED indicator to let you know when you are beginning to distort so you can quickly set the speaker to max volume before distortion.

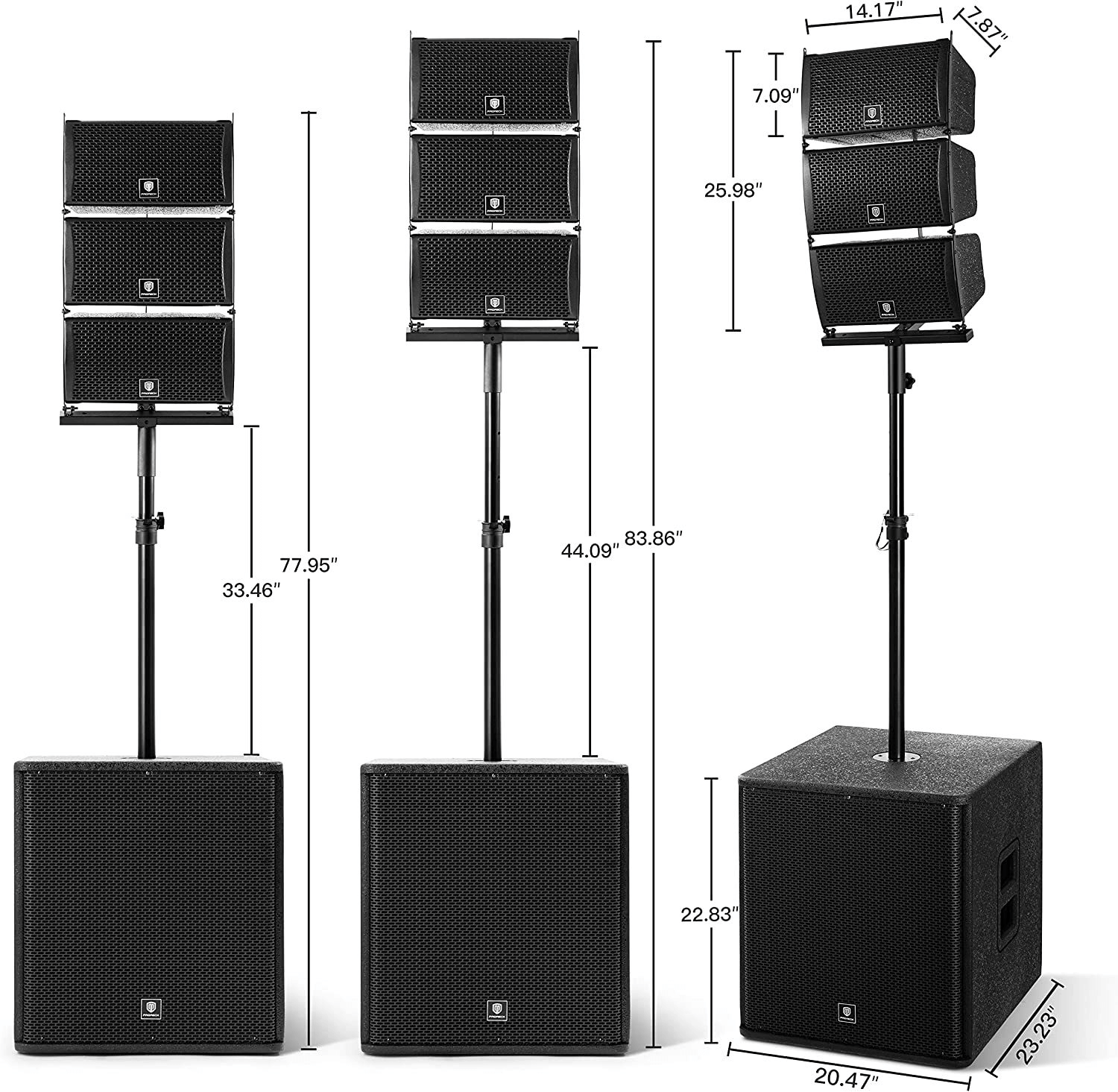

The built in USB input and SD input are great options for playing back any of your stored music on USB or SD cards. The Bluetooth can instantly pair with your Phone, Mixer and so on with line of sight of up to 66 feet. This powered system set features BLUETOOTH & USB DRIVE & SD CARD functions. Besides, you can also use the remote control to switch mode, play/pause, switch to previous/next song, increase/decrease volume; Telescoping stands can adjust this awesome pa system from 78 inch to 84 inch. Use side handles to lift and transport dual bass subwoofers conveniently.

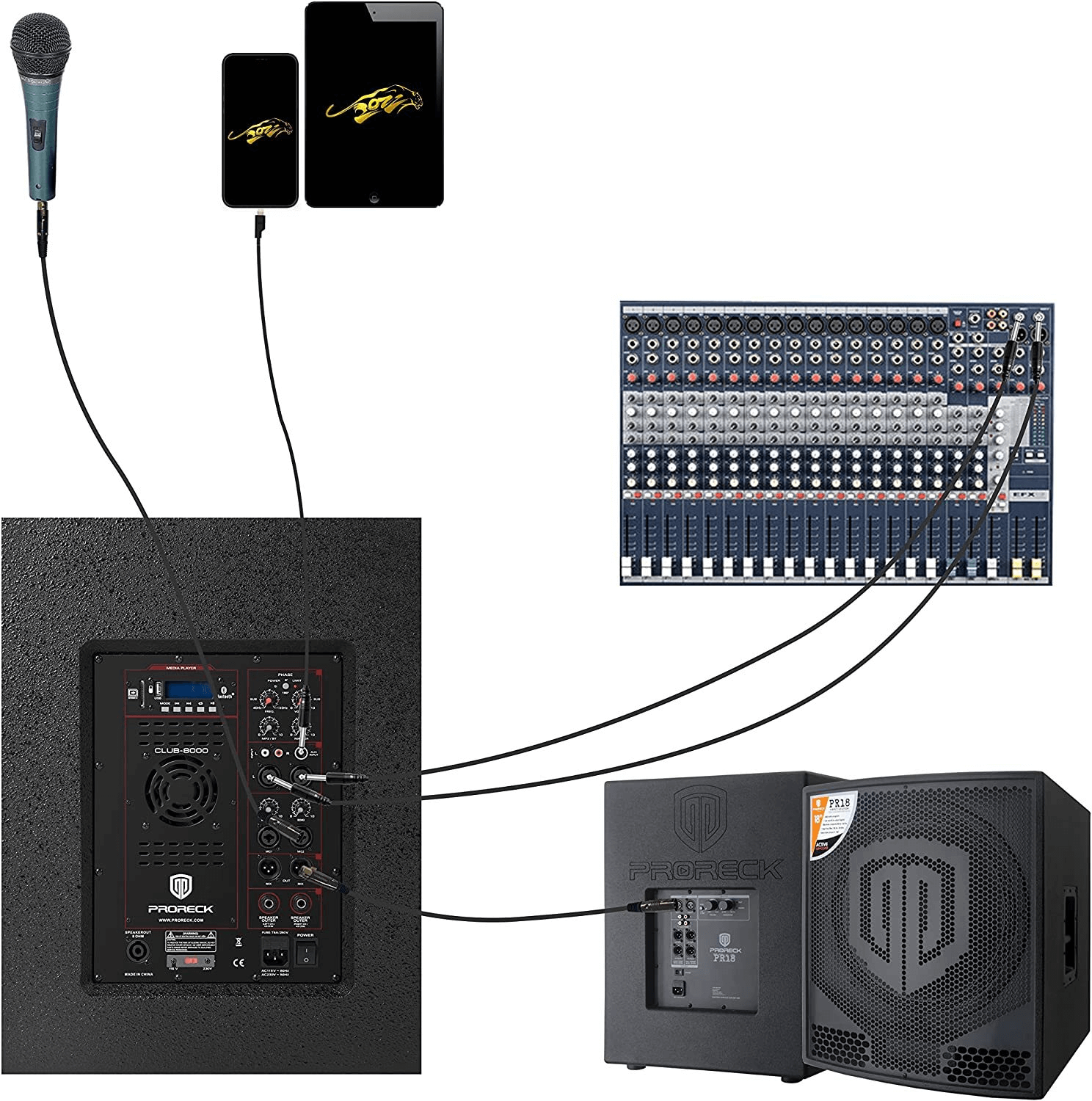

The Connection of Club 8000

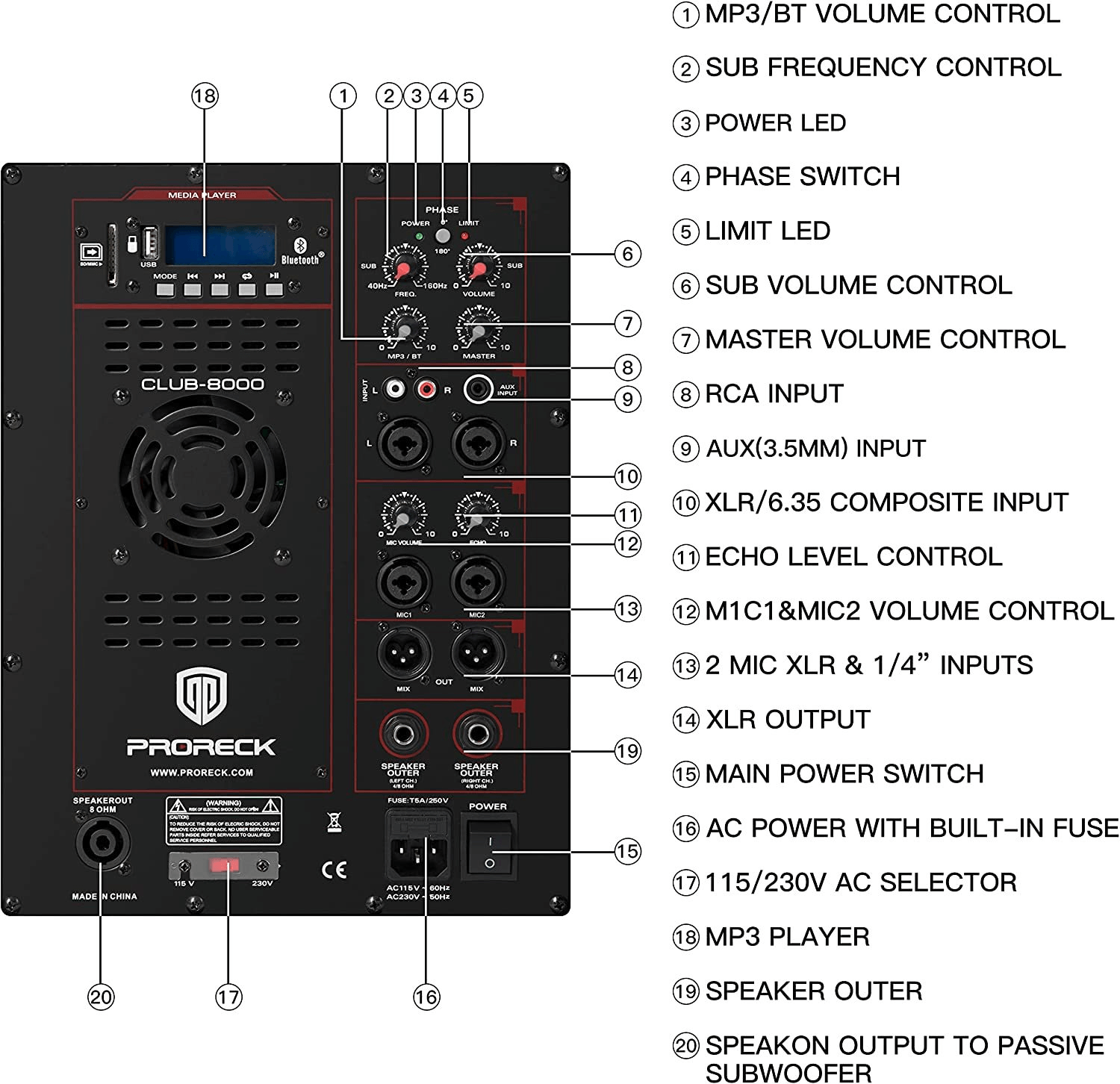

The mixer section has 3 kinds of line input: Stereo RCA input, 3.5mm AUX input and 6.35mm&XLR/1/4" combo jacks; 2-channel Mic input; 2-channel XLR/1/4’’ outputs. The stereo channel allows you to select between RCA input, XLR input, or the built in Bluetooth/mp3 module. There is also 2 XLR outputs that allow you to connect these pa systems together, or you can use them to connect a powered subwoofer to your system.
NOTE--Please DIY your pa syetem under professional guides.
We also added one other cool features called TWS linking. This feature allows you to connect 2 PRORECK CLUB-8000 systems together wirelessly through Bluetooth with no additional cables required.
Shipping Information Noted
The PRORECK Club 8000 are shipped with 3 packages separately by FEDEX.
They are CLUB-8000L,CLUB-8000M,CLUB-8000N.
- CLUB-8000L: Top array speakers plus cables.Carton weight 60.1 lbs, Carton size 28.4*20.9*16.6 inches
- CLUB-8000M: A 18 inch subwoofer powered.Carton weight 97.7 lbs. Carton size 26.4*25.8*24.1 inches
- CLUB-8000N:A 18 inch subwoofer passive.Carton weight 88.4 lbs. Carton size 26.4*25.8*24.1 inches
