Video of PR-212T
How to set up Your PR-212T
Introduction
- Powerful Audio Performance: Experience stellar sound with dual 4-inch 2-way passive line array speakers and dual 12-inch subwoofers boasting 1200W RMS and 3600W peak power. This large PA system is capable of handling robust audio demands, making it ideal for delivering music to audiences exceeding 500 people.

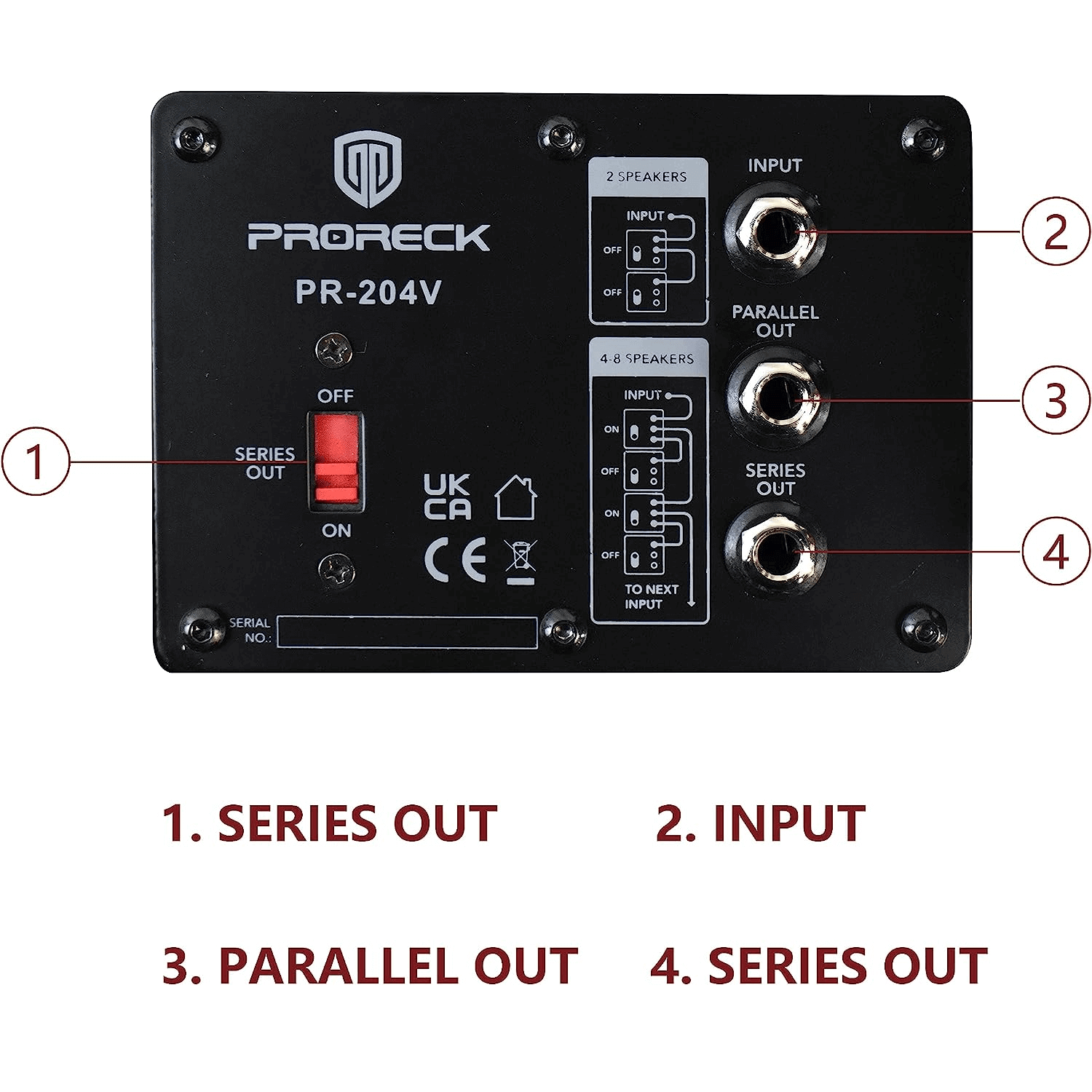

- Advanced Configuration: The dual 12-inch bass reflex subwoofer integrates seamlessly with the line array speakers. Independent volume controls for satellite speakers and subwoofer ensure precise sound reproduction tailored to any venue or event size.Besides, the SERIES OUT will help you to control the number of tweeters’ connection according to your needs.

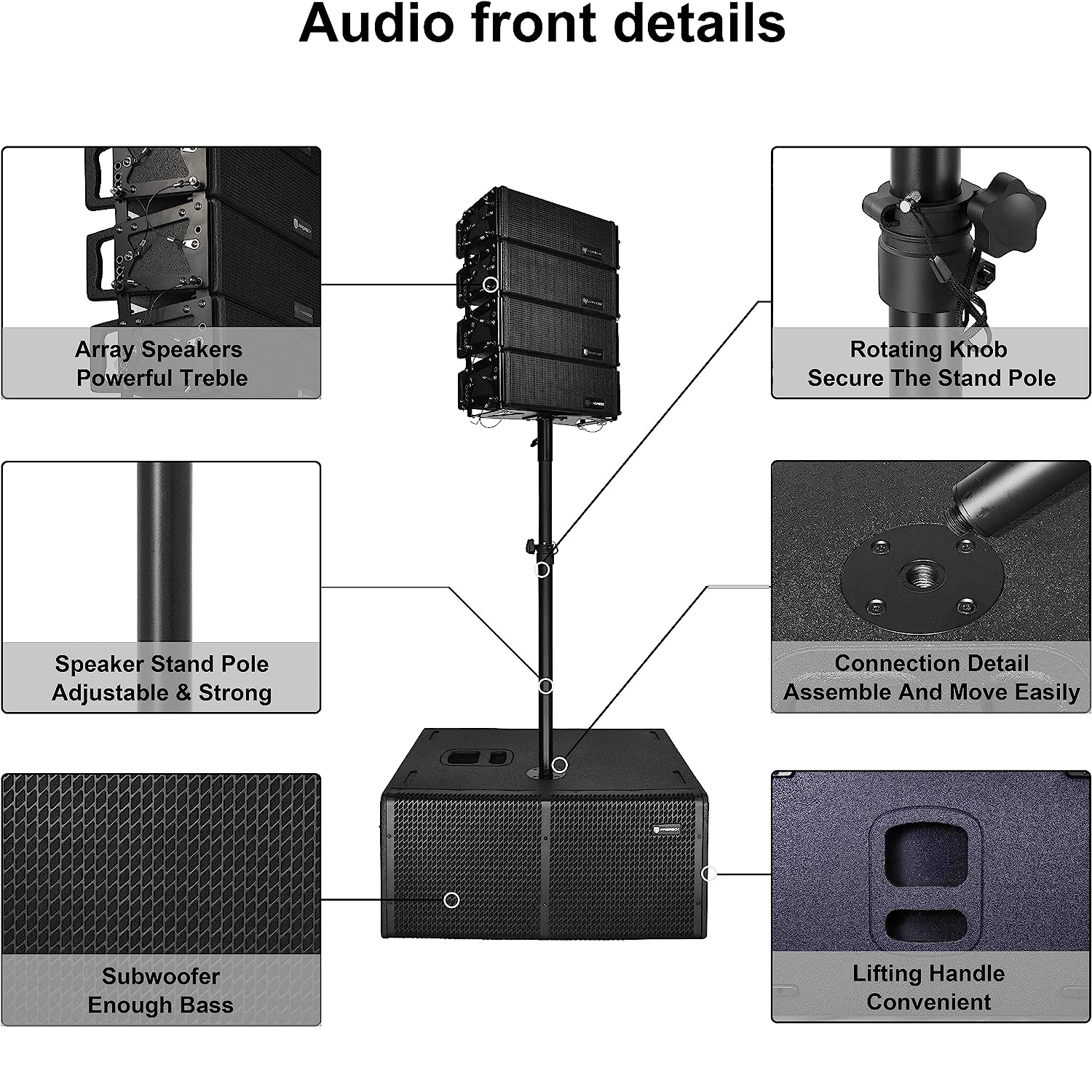

- Versatile Mounting Options: Featuring multiple flying points, the system offers flexible mounting or flying configurations with three splay brackets to adjust the projection angle (0°, 5°, 10°), optimizing sound coverage directly to the audience.
- Back Panel Control: Equipped with a 96KHz, 48-bit DSP processor, this dual 12 inch subwoofer allows for fine-tuning through four preset frequency curves. Besides, connections are simplified with 2 combo XLR/Jack inputs & outputs, and 2 SPEAKON jacks to the high top array speakers both sides. Moreover, its crossover will divide an audio signal into separate frequency easily for you.

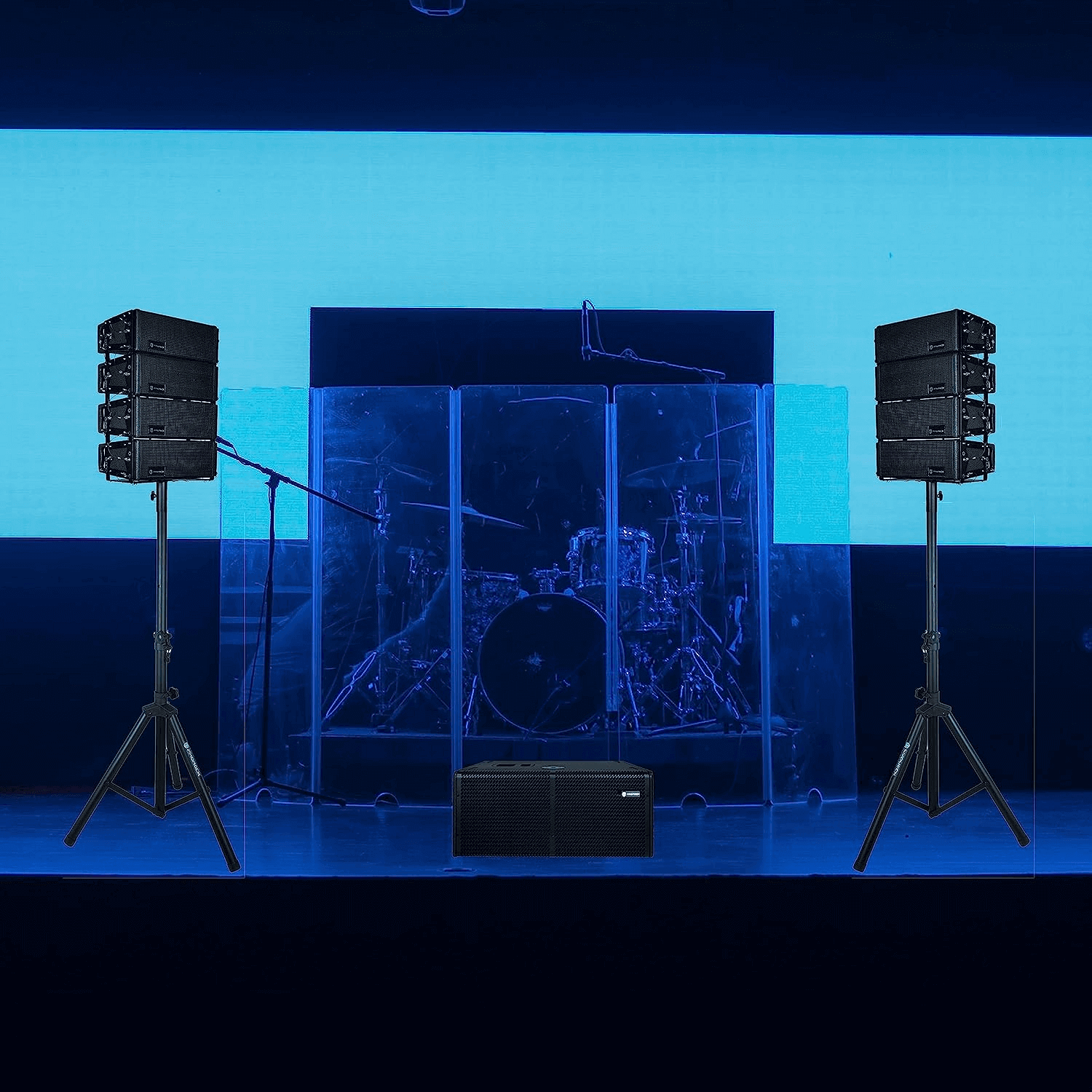

- Broad Application: This system's extensive reach, covering up to 1000 m²,more than 500 people, makes it perfect for a variety of events such as weddings, meetings, church services, and educational settings. It effortlessly connects to multiple musical instruments, enhancing any performance or presentation.
Shipping Information Noted
The PRORECK PR-212T (CONCERT SET) ships in 5 separate packages to ensure safe transport. By FEDEX.
- PR-212T: A Dual 12'' subwoofer, Carton weight 95.7 LBS, Carton size 35*27.4*17.7 Inch(L*W*H).

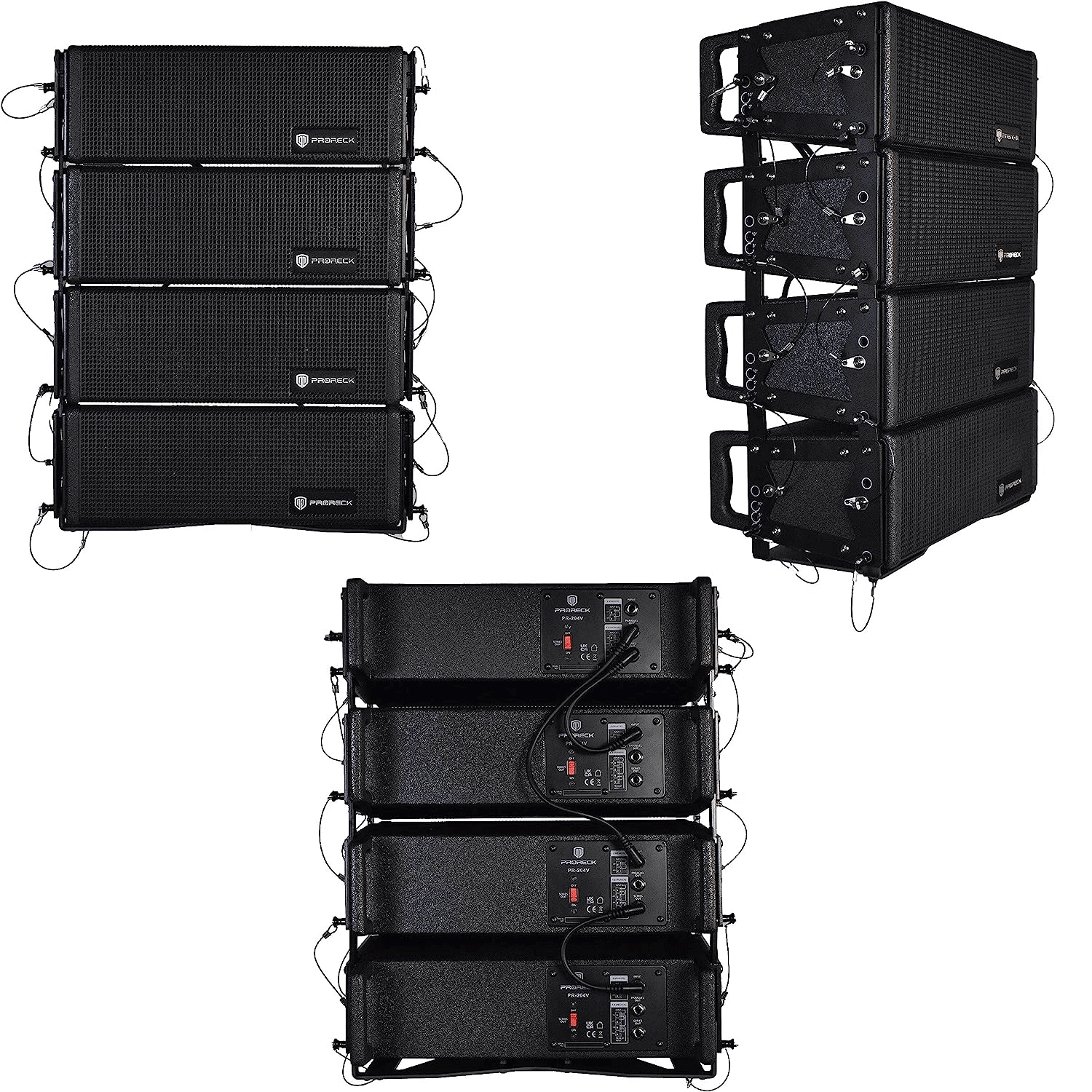

- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-15S: One set tripod stand,Carton weight 14 LBS, Carton size 36*9*4 Inch(L*W*H).
- PR-ADAPTER: Two adapters to hold tweeters,Carton weight 11 LBS, Carton size 17*8.5*5 Inch(L*W*H).

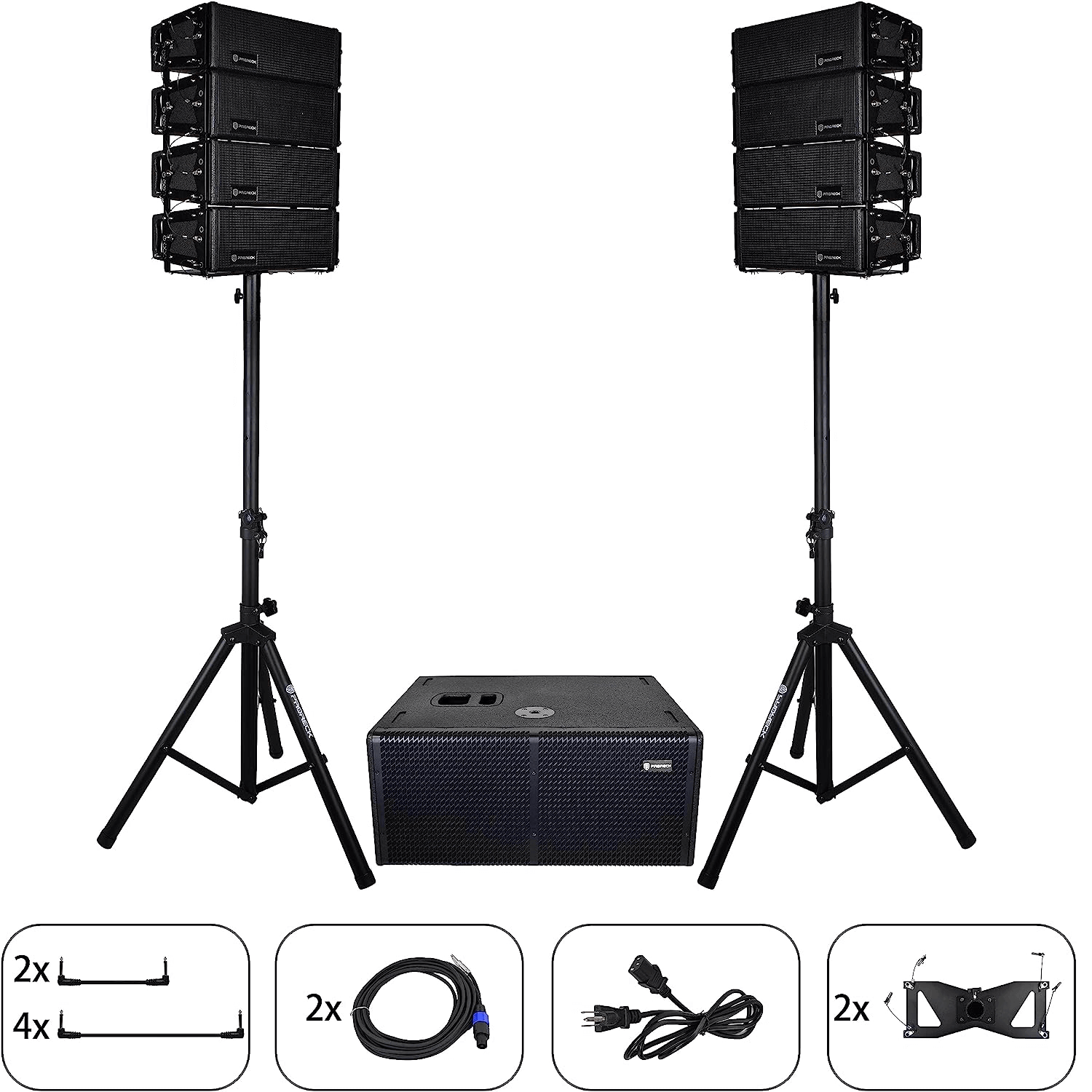

Packages Include:
- Proreck Active Subwoofer Dual 12 Inch x 1
- Proreck Array Speaker Dual 4 Inch x 8
- 20-Feet Speakon to 6.35mm Cable x 2
- 14-Inch 1/4'' Jack Array Cable x 4
- 8-Inch 1/4'' Jack Array Cable x 2
- PR-212T Adapter x 2
- 6-Feet Power cable x 1
- Owner manual x 1
- Tripod Stand Set x 1
Product Features
- Voltage: 115V/230V
- Power(peak): 2400W+600W*2(Bi-AMP)
- Power(continuous): 1600W+400W*2(Bi-AMP)
- Power(RMS): 800W+200W*2(Bi-AMP)
- Sensitivity(1w@1m): 125dB
- Subwoofer Size: Dual 12"SUB / Satellite Speaker Size: 8*Dual 4"Full Range
- Subwoofer Magnet: 80oz / Satellite Speaker Magnet: 10oz
- Subwoofer Coil Size: 3" / Satellite Speaker Coil Size: 1"
- Subwoofer Impedance: 4ohms / Satellite Speaker Impedance: 8ohms
- Satellite Speaker Horn Size: 2 x 1"Neodymium HF
- Subwoofer Frequency Response: 45-20k Hz
- Subwoofer Weight: 43.5kgs / Satellite Speaker Weight: 22kgs*2
- Subwoofer Carton Dimensions: 695*450*890mm
- Satellite Speaker Carton Dimensions: 560*400*500mm*2
