How to set up Your PR-212TS
Introduction

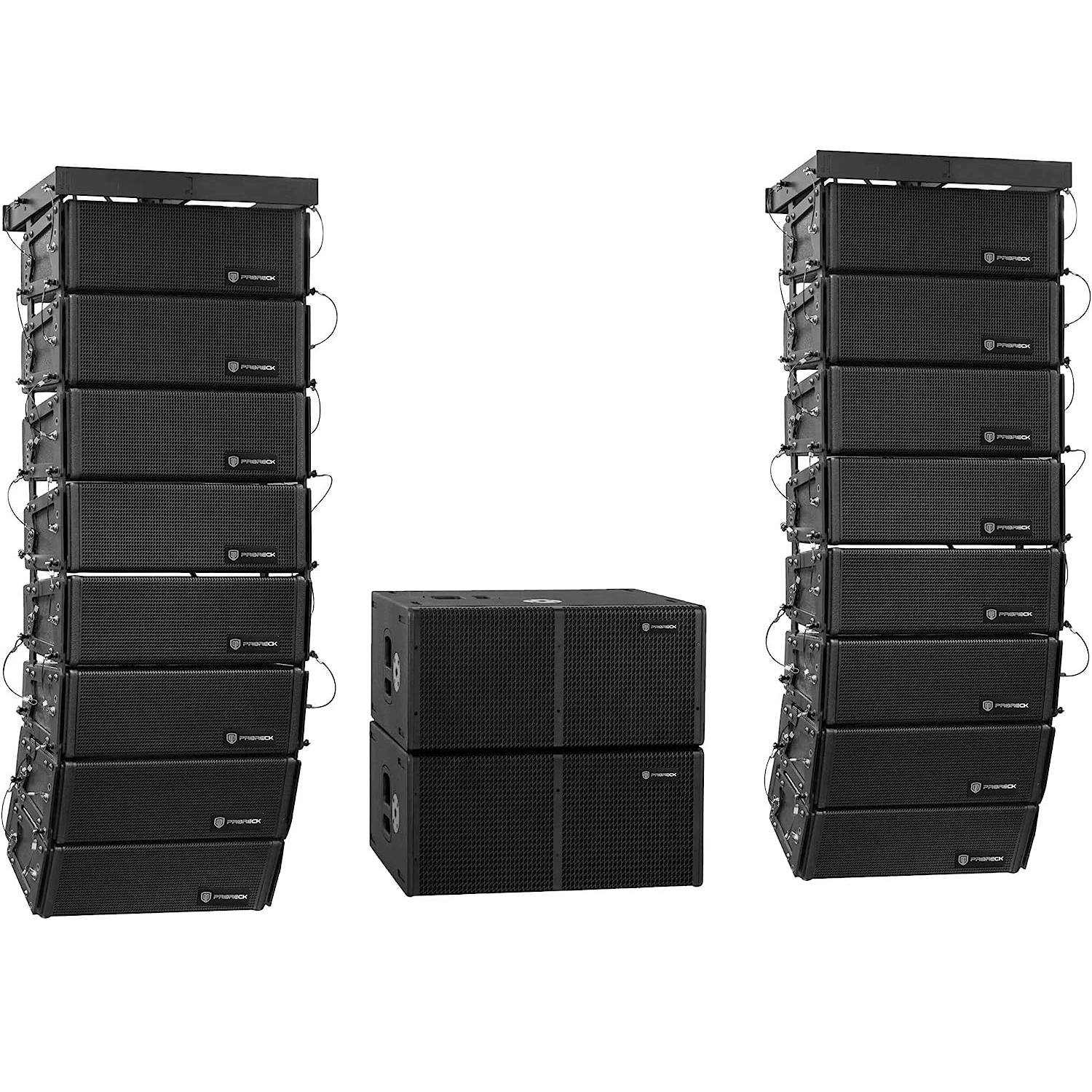

- STELLAR SOUND AND MASSIVE POWER: The set delivers superior sound quality by dual 4’’ 2-way passive system and dual 12’’ subwoofer with 2400W RMS, 7200W peak power handling capability. The set features a 12’’ bass reflex subwoofer and streams music to the line array speakers, independent satellite speaker and subwoofer volume controls guarantee optimized sound reproduction, and then deliver music to more than 700 audiences.

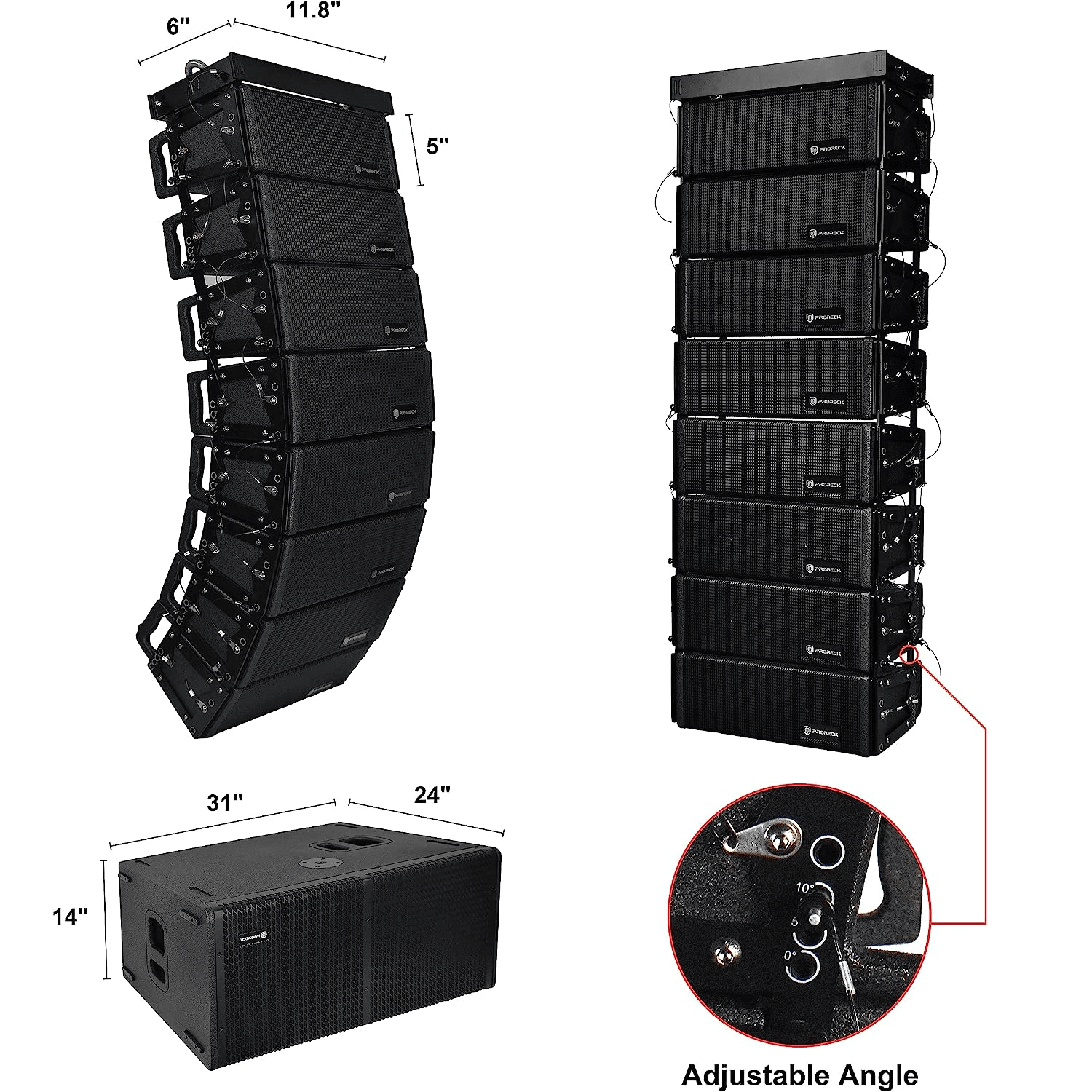

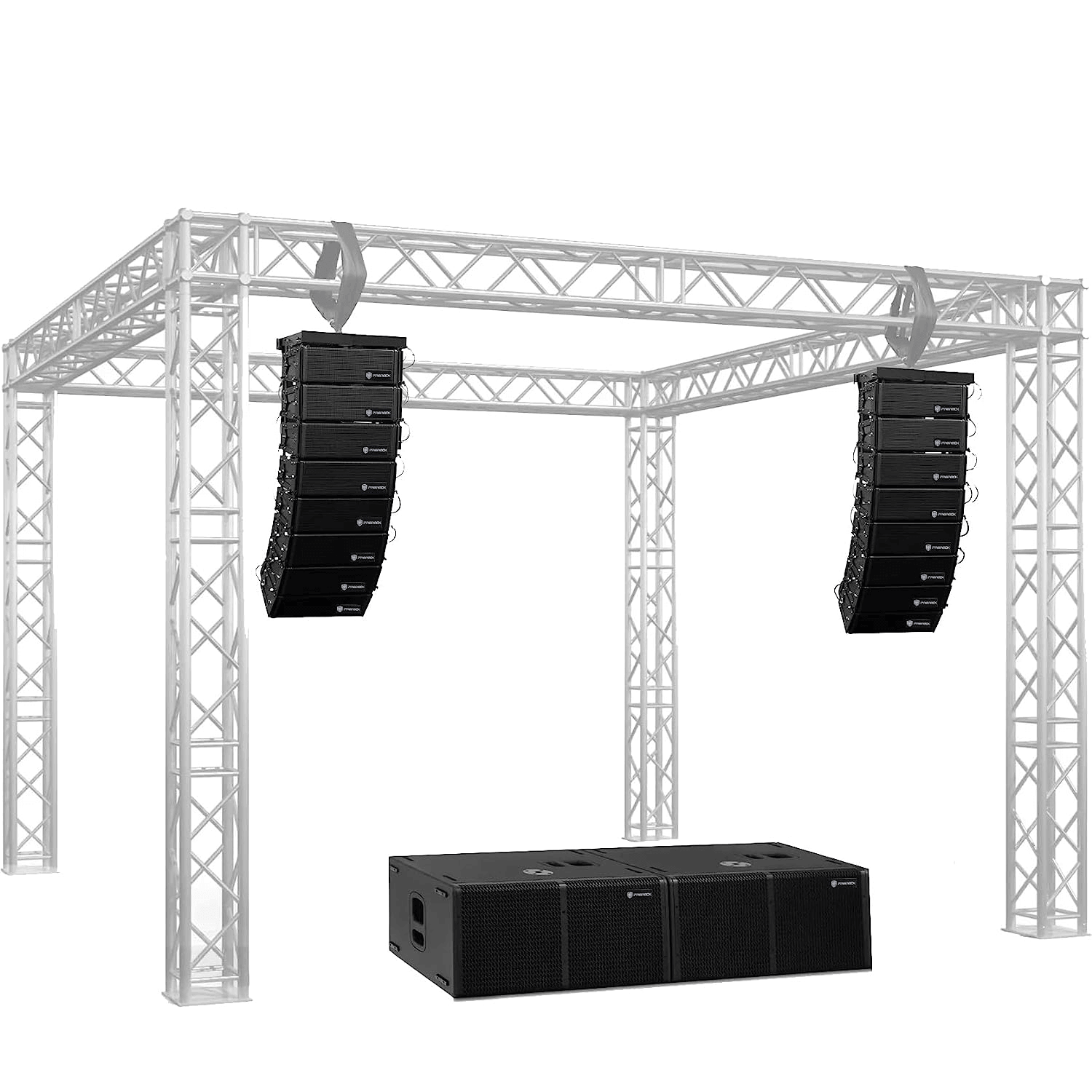

- EASY MOUNTING: The set has multiple flying points and provides flexible mounting or flying options; three different splay brackets are provided to configure the angle (0°,5°,10°) to optimize the coverage to the audience area.

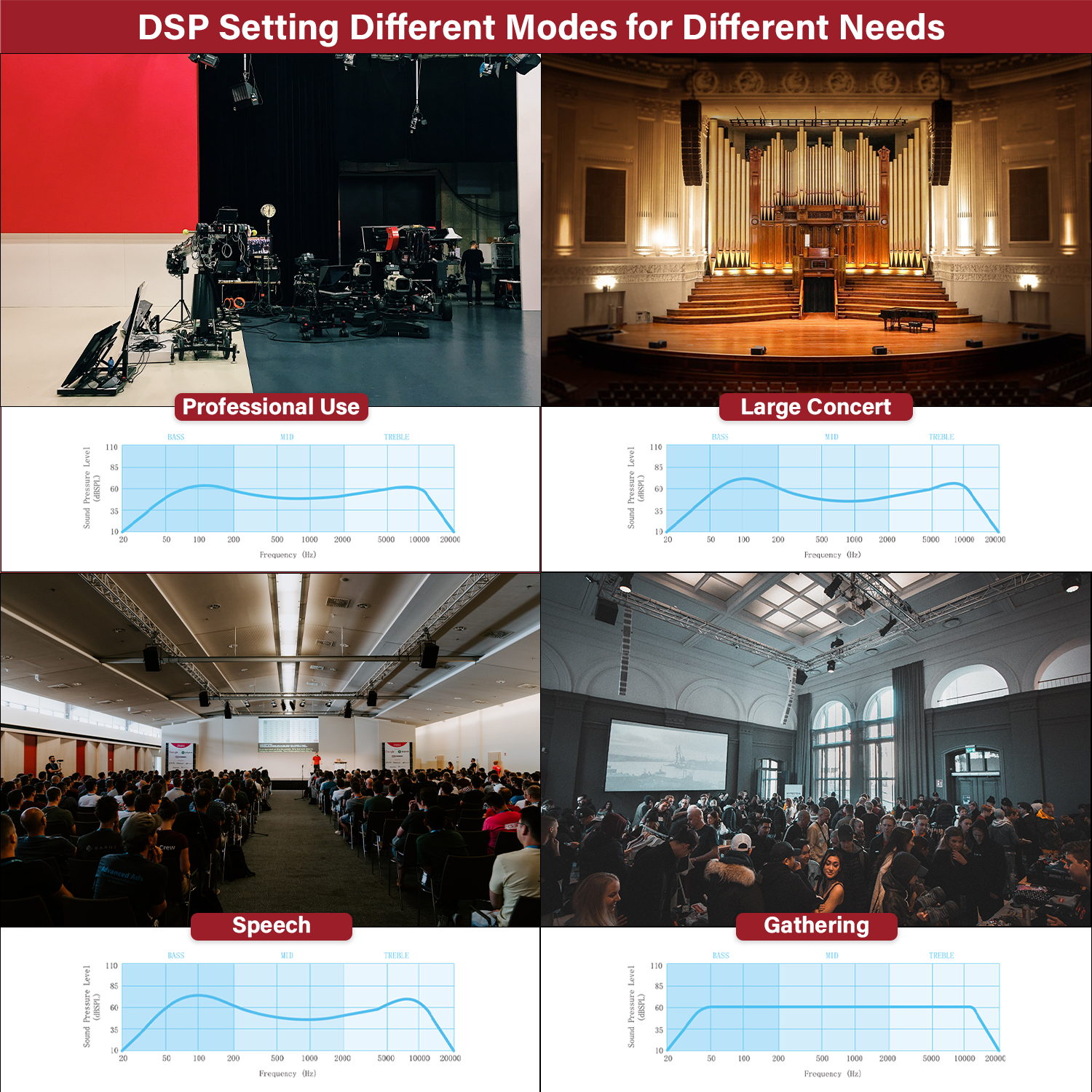

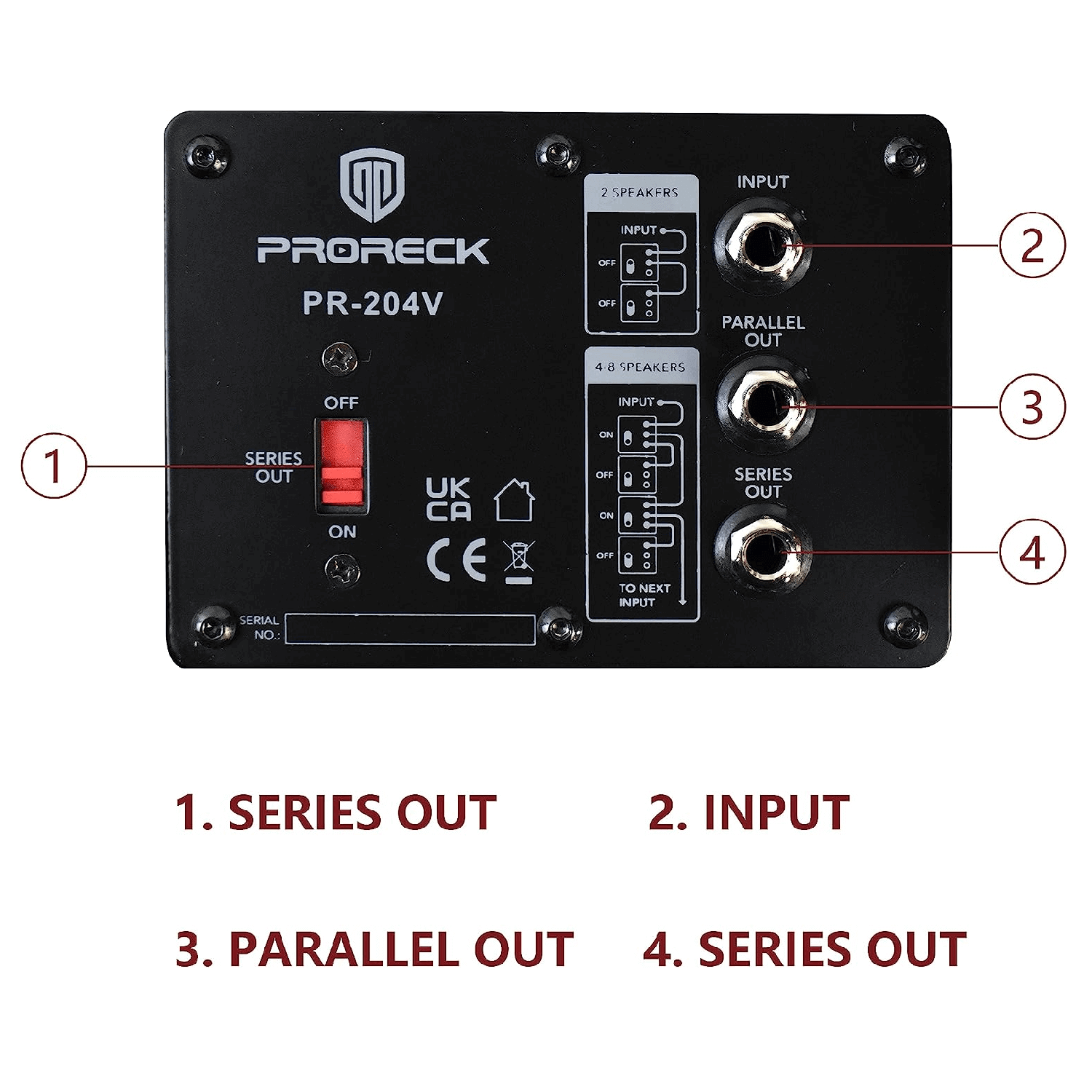

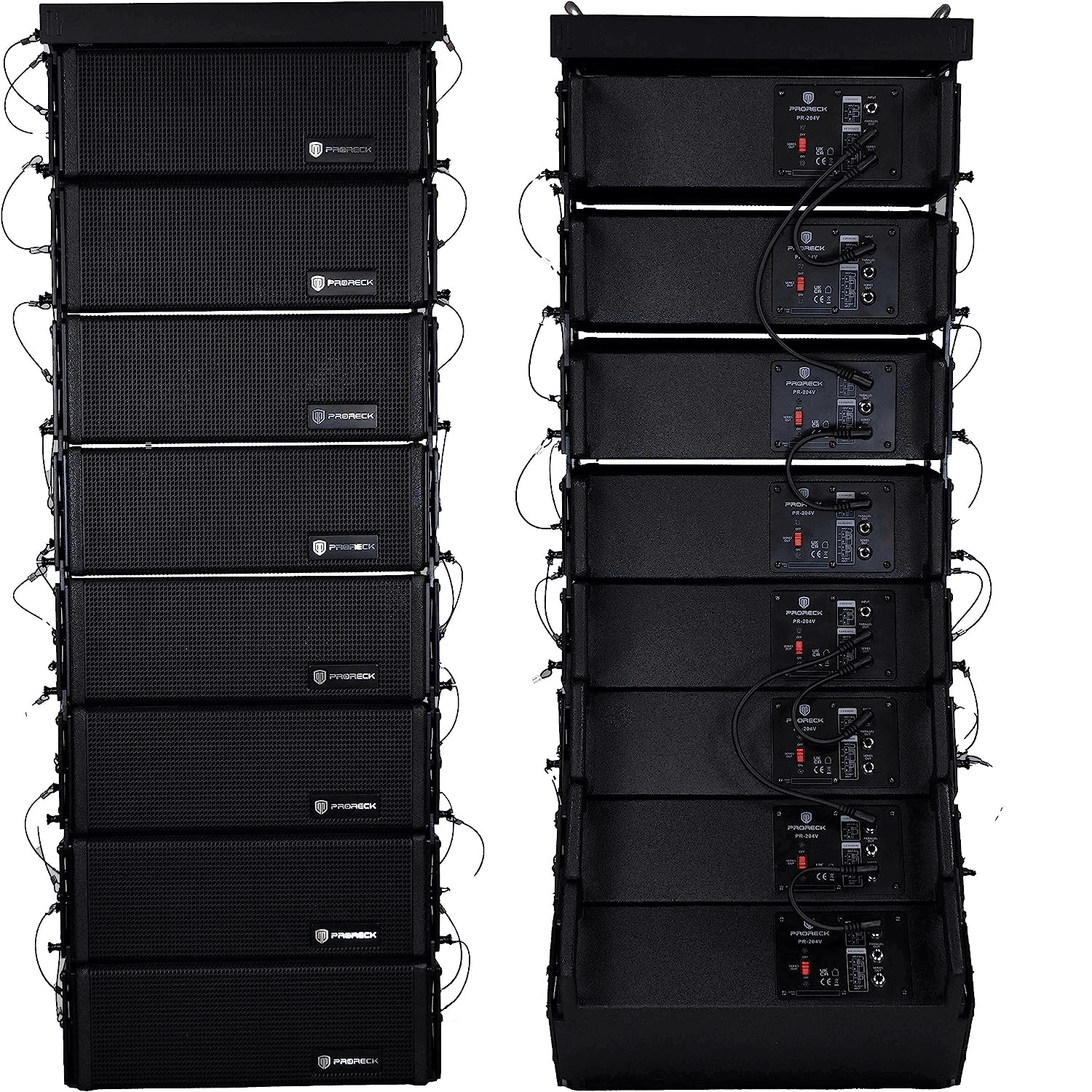

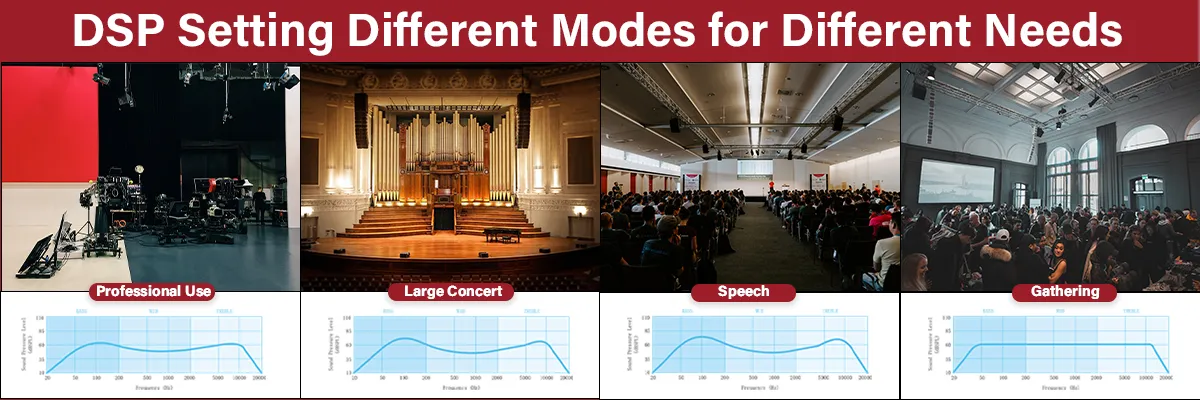

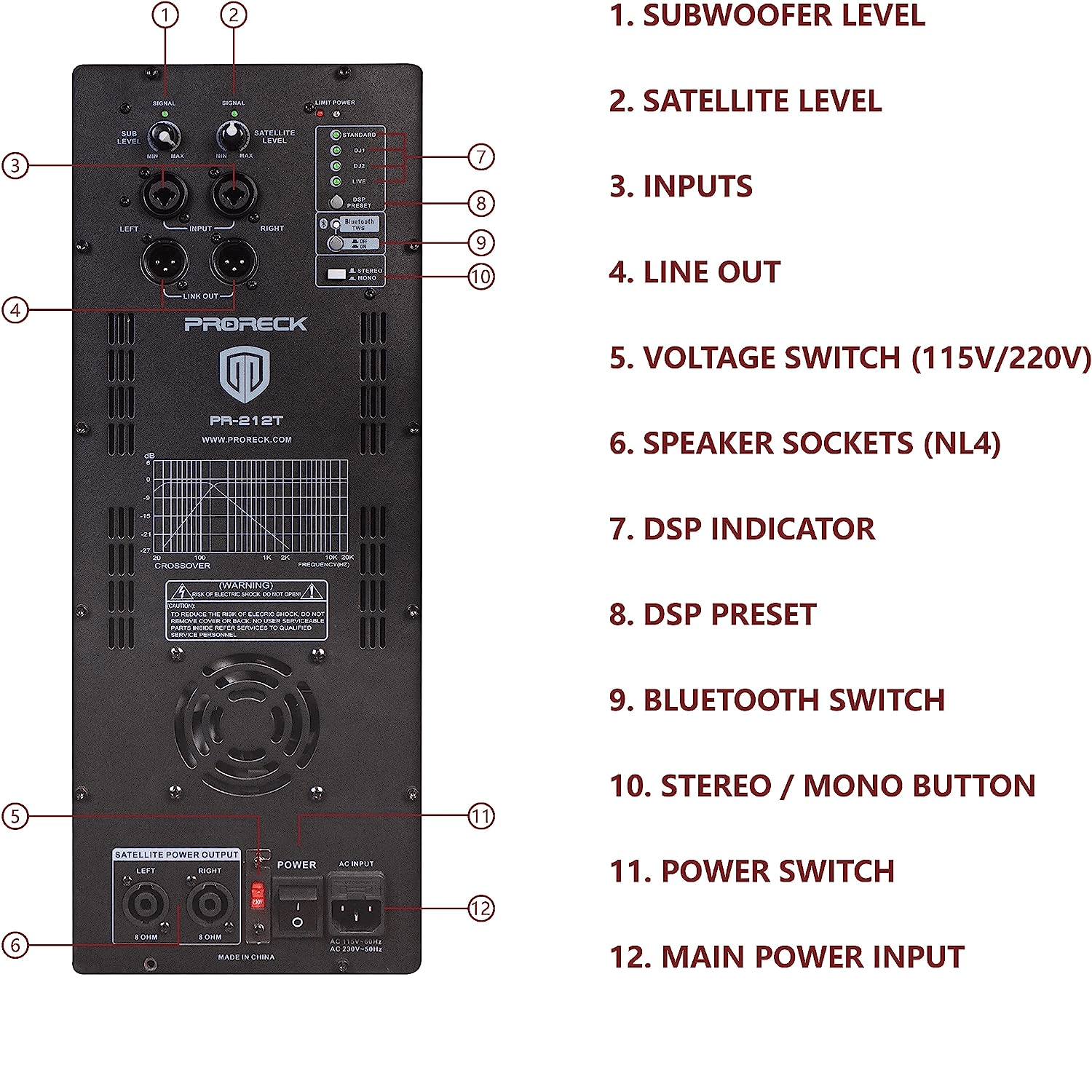

- STRONG FUNCTIONS: The subwoofer includes 96KHz, 48-BIT DSP processor with four preset frequency curves and connect a variety of sources via two combo XLR/Jack inputs. You can effortlessly switch between mono and stereo playback at the touch of a button. The array speaker can boasts serial/parallel connection technology.
- WIDE RANGE OF USAGE: The PA system can accommodate up to 700 persons and 1000 m2, which makes it suitable for amplifying any type of audio including music or vocals. Great for wedding, meeting, speeches, churches, class teaching, gymnastics, large conference, etc. Easily connect to multiple musical instruments.
Shipping Information Noted
The PR-212TS Venue Set will be shipped in 7 packages separately. By FEDEX.
- PR-212T: A Dual 12'' subwoofer, Carton weight 95.7 LBS, Carton size 35*27.4*17.7 Inch(L*W*H).
- PR-212T: A Dual 12'' subwoofer, Carton weight 95.7 LBS, Carton size 35*27.4*17.7 Inch(L*W*H).
- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-204V: Four Dual 4'' array speakers, Carton weight 48.8 LBS, Carton size 21.9*19.7*15 Inch(L*W*H).
- PR-FLY CASE: Fly case with cables, Carton weight 21.6 LBS, Carton size 17.5*9.6*9.1 Inch(L*W*H).

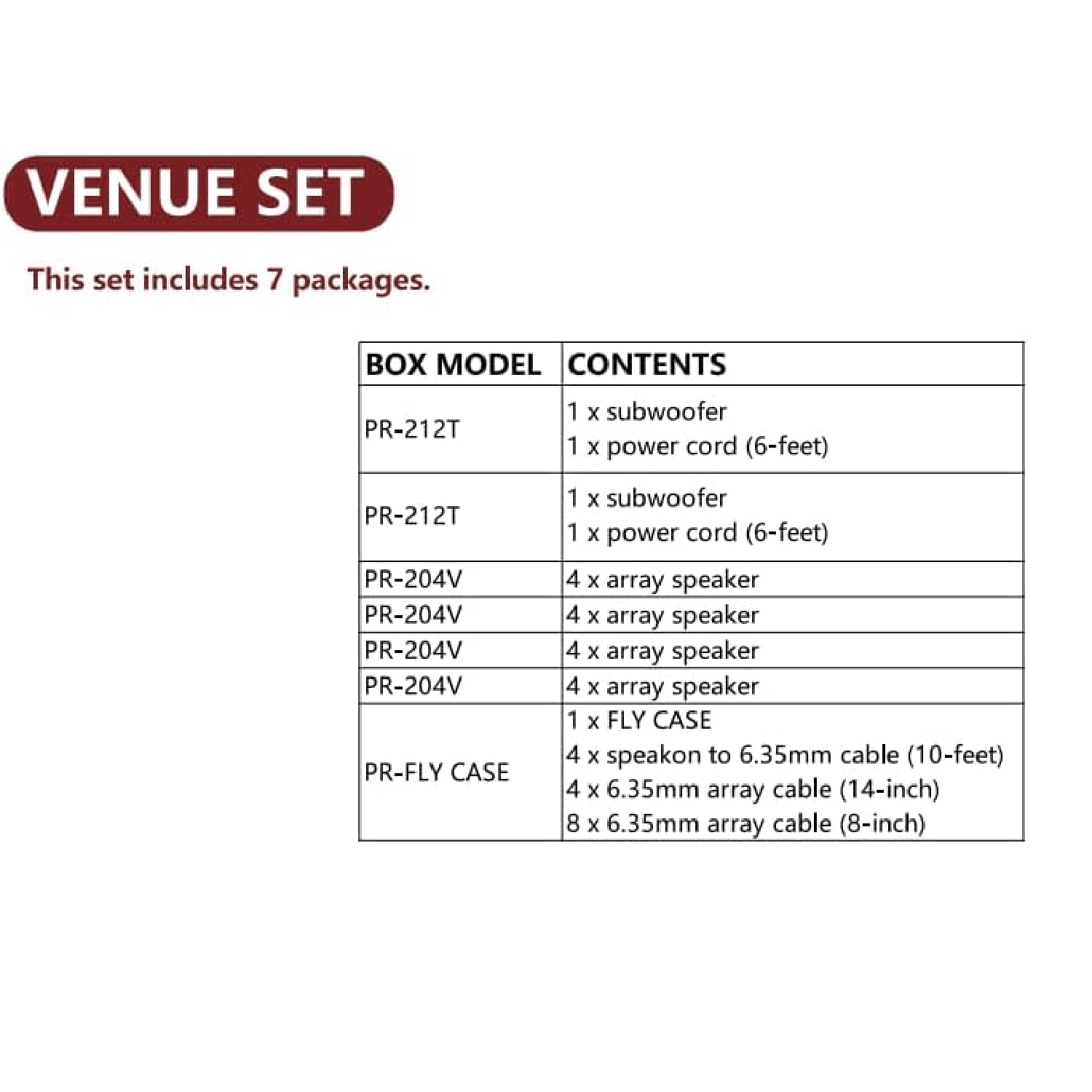

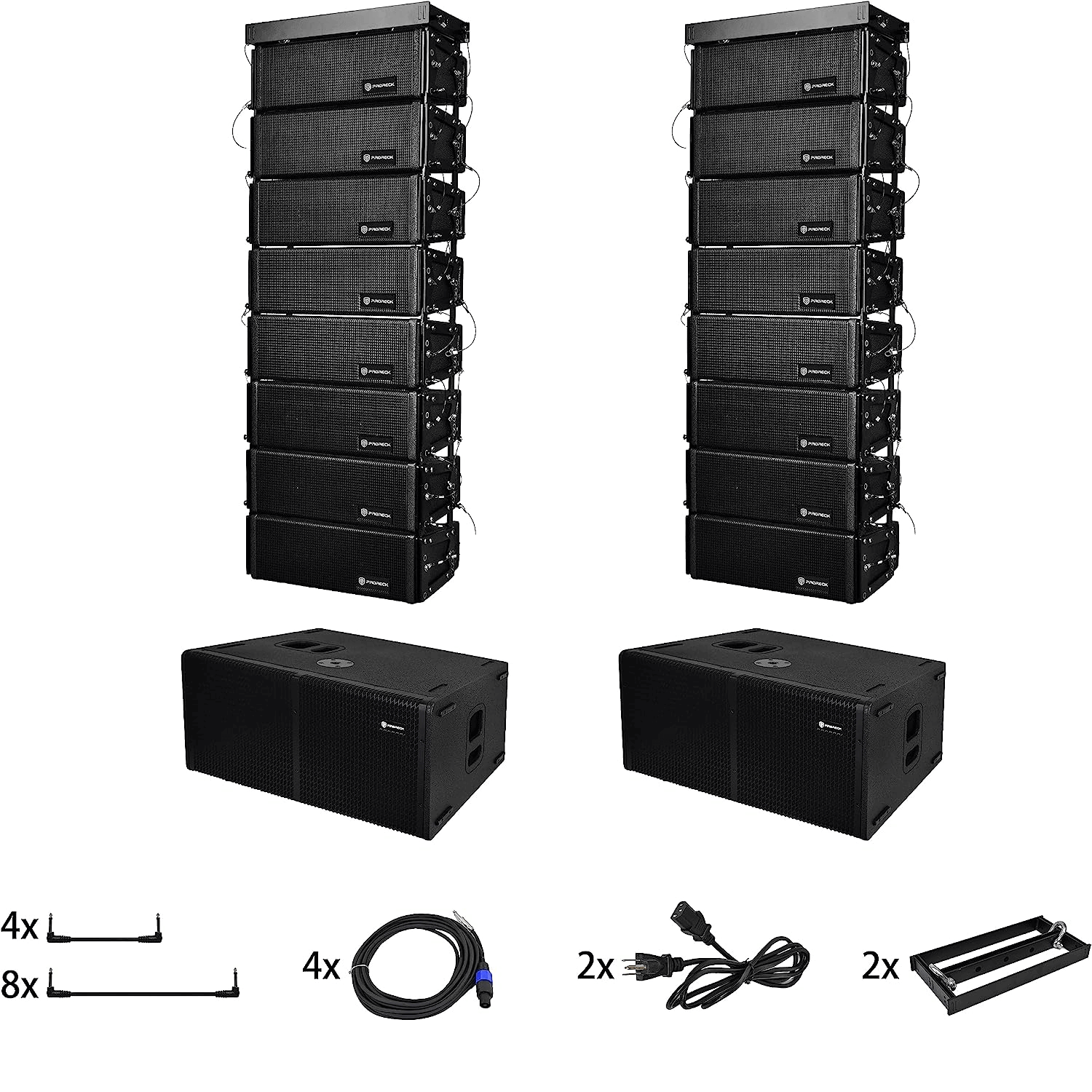

Packages Include:
- Proreck Active Subwoofer Dual 12 Inch x 2
- Proreck Array Speaker Dual 4 Inch x 16
- 20-Feet Speakon to 6.35mm Cable x 4
- 14-Inch 6.35mm Array Cable x 4
- 8-Inch 6.35mm Array Cable x 8
- 6-Feet Power cable x 2
- Owner manual x 1
- Fly Case x 2
Product Features
- Voltage: 115V/230V
- Power(peak): 2400W*2+600W*4(Bi-AMP)
- Power(continuous): 1600W*2+400W*4(Bi-AMP)
- Power(RMS): 800W*2+200W*4(Bi-AMP)
- Sensitivity(1w@1m): 128dB
- Line Array Size: Dual 4-Inch Full Range*16 / Subwoofer Size: Dual 12-Inch Subwoofer*2
- Line Array Magnet: 10oz / Subwoofer Magnet: 80oz
- Line Array Coil Size: 1" / Subwoofer Coil Size: 3"
- Line Array Impedance: 8ohms / Subwoofer Impedance: 4ohms*2
- Line Array Horn Size: 2 x 1"Neodymium HF
- Subwoofer Frequency Response: 45-20k Hz
- Line Array Weight: 22kgs*4 / Subwoofer Weight: 43.5kgs*2
- Line Array Carton Dimensions: 560*400*500mm*4
- Subwoofer Carton Dimensions: 695*450*890mm*2
